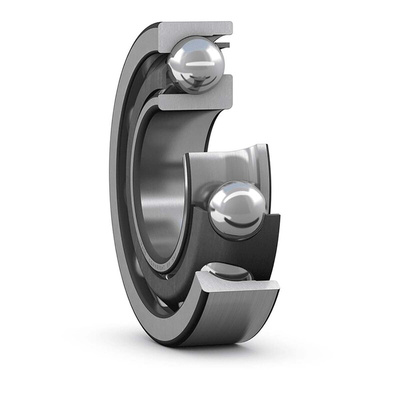

SKF 7213 BECBJ Single Row Angular Contact Ball Bearing- Open Type 65mm I.D, 120mm O.D, Шарикоподшипник

2075462
Номер производителя: 7213 BECBJПроизводитель: SKF
Цена за шт.
74423.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The SKF Angular contact ball bearing has 65mm inner bore and 120mm outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This bearing is designed to accommodate combined loads, i.e. Simultaneously acting radial and axial loads.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.

Single row
Cylindrical type bore
Steel bearing
Nominal contact angle 40 deg

Техническая спецификация
pdfDatasheet - 7213 BECBJ
pdfSKF Bearing Designations
