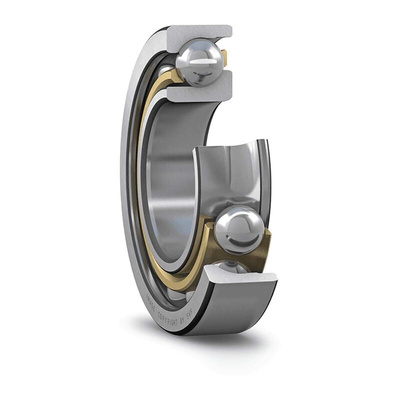

SKF 7226 BCBM Single Row Angular Contact Ball Bearing- Open Type 130mm I.D, 230mm O.D

SKF Ball Bearing, 130 mm ID, 230 mm OD - 7226 BCBM

Need a durable bearing that's able to accommodate a combined radial and axial load? This angular contact bearing from SKF has inner and outer raceways that are displaced relative to each other in the direction of the bearing axis. This means it can safely handle the pressure from simultaneous loads. As this unit is a low-friction option, it offers a long service life and operates at a low temperature. It meets both British and EU electrostatic discharge standards, you can be sure it won't cause damage to equipment through accidental electrostatic discharge. This type of bearing is commonly used throughout heavy and light industries and can be found in everything from gearboxes to pumps and electric motors.

• Open end type
• Inside diameter of 130 mm
• Outside diameter of 230 mm
• Race width of 40 mm
• Nominal contact angle of 40˚

Application Information

• Machine tooling
• Steel mills
• Wind energy industry, including turbines

When should I use an angular contact bearing?

Angular contact bearings are ideal for use in machinery that demands a high level of accuracy and durability. They're commonly used in machine tool spindles, vacuum pumps and centrifuges.

Datasheet - 7226 BCBM
