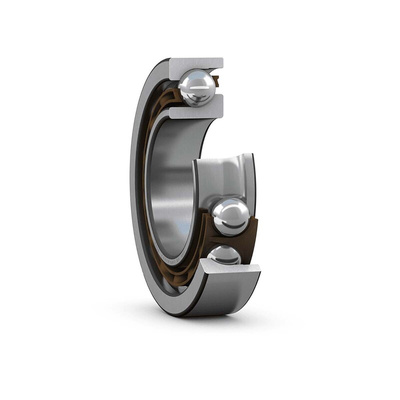

SKF 7303 BEP Single Row Angular Contact Ball Bearing- Open Type 17mm I.D, 47mm O.D

SKF Angular Contact Ball Bearing, 17mm ID, 47mm OD - 7303 BEP

This high-performance angular contact bearing from SKF allows for the rapid acceleration and deceleration of rotational loads. The component is made from strong and durable steel, which is highly resistant to corrosion and rusting. It can also withstand exposure to chemicals and solvents, so it will last a long time even when used in harsh environments. The design of this unit allows for a large number of rolling elements to be incorporated into the bearing's housing, which gives it a high static load rating of 8.3kN and a dynamic load rating of 15.9kN.

• Low heat generation for enhanced efficiency
• Limiting speed of 19,000rpm (rotations per minute) to support high-speed applications
• Low levels of vibration for optimal machine performance
• Non-separable unit that's virtually maintenance-free and unlikely to need re-lubrication

Applications

• Paper and pulp industries
• Automotive industry
• Conveyors

Is an angular contact bearing suited to radial or axial loads?

Angular contact ball bearings have inner and outer raceways that are displaced relative to each other in the direction of the bearing axis. This design allows them to accommodate simultaneously acting axial and radial loads, making them a versatile choice.
