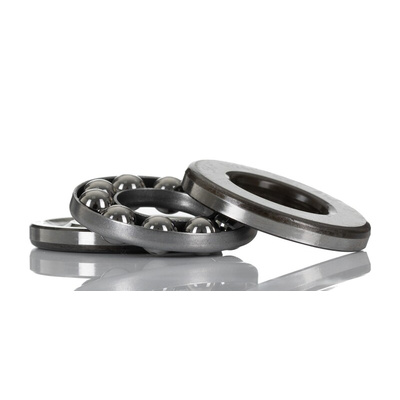

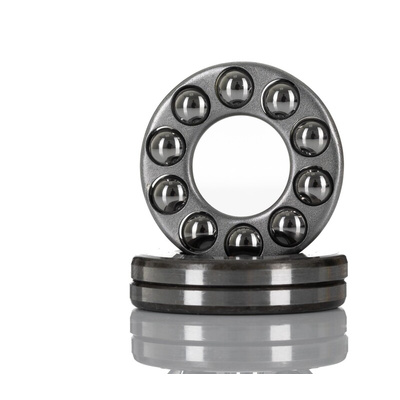

SKF 51201 Thrust Ball Bearing- Open Type 12mm I.D, 28mm O.D

SKF Ball Bearing, Thrust Bearing Type, Open Ended, 12mm ID, 28mm OD - 51201

Do your machine a good turn by fitting this ball bearing from SKF to its shaft. Made from high-strength bearing steel, this thrust-type bearing is able to support loads applied along the axis. The balls are caged to keep them evenly spaced, while ground-bore shaft washers are on hand to achieve a snug fit that minimises vibration. This supports smooth and quiet running and cuts down on wear and tear. Thanks to a limiting speed of 11,000 revolutions per minute, you can be sure the bearing keeps pace when motor speeds go up a gear. An inside diameter of 12mm and a race width of 11mm means this compact bearing has no trouble fitting into tool heads and portable equipment.

• Cylindrical shape for quick and easy fitting
• Pulls apart to make maintenance and servicing a cinch
• Interchangeable components for adaptability

Applications

• Automotive industry
• Agricultural equipment
• Industrial automation
• Domestic appliances

The SKF thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load. It has 12 mm ID and 28 mm OD.

What loads can this ball bearing handle during use?

Bearing material is of bearing steel
Cylindrical bore type

A dynamic load rating of 13.3kN means this ball bearing can handle heavy axial loads while it's in motion.
