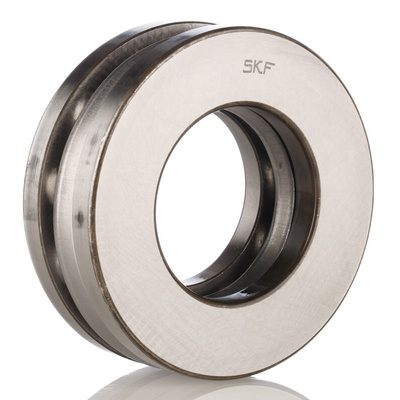

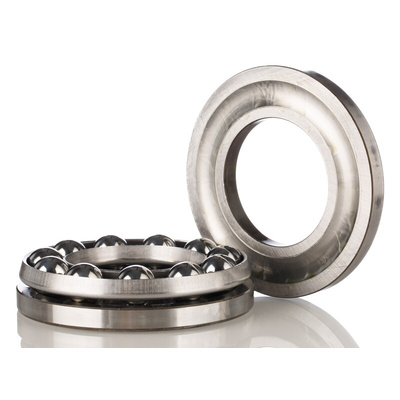

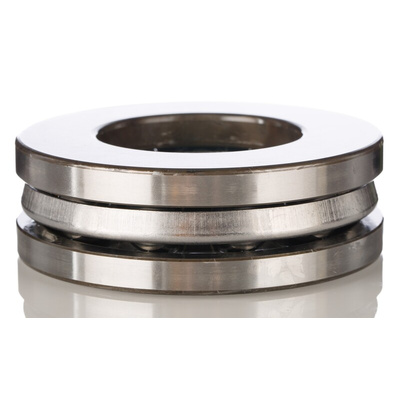

SKF 51306 Thrust Ball Bearing- Open Type 30mm I.D, 60mm O.D

SKF Ball Bearing, Single-Direction Thrust, 30mm ID, 60mm OD - 51306

Choose this robust thrust ball bearing from SKF for axial loads that rotate in one direction. It's designed to reduce friction build-up, helping to keep equipment running cooler and improving the efficiency of your system. As the bearing is separable, it's quick and easy to mount and dismount. All elements are made of hardwearing steel so you can use it in demanding and damp industrial environments. This unit is a good choice for equipment such as blowers, fans and break compensation devices.

• Low weight of 0.26kg places minimal strain on equipment for reduced energy consumption
• Dimensions of 30 (ID) and 60mm (OD) for use in small to medium-sized equipment
• Open-ended design for ease of lubrication and maintenance
• Dynamic load rating of 35.8kN means it can withstand heavy loads

Applications

• Automotive and railway industry
• Material handling
• Rotary compressors
• Agricultural equipment

What's the difference between a radial bearing and a thrust bearing?

A thrust bearing has a contact angle of greater than 45°, while a radial bearing has a contact angle of less than 45°.
