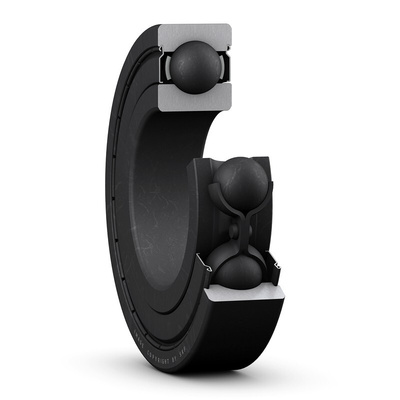

SKF 6005-2Z/VA201 Single Row Deep Groove Ball Bearing- Both Sides Shielded 25mm I.D, 47mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, Sheet Metal Cage, 25mm ID, 47mm OD - 6005-2Z/VA201

When you need a rolling element for high-temperature applications, this ball bearing from SKF takes the heat. It performs reliably up to a maximum operating temperature of +250°C thanks to a large radial internal clearance and graphite-based lubricant. The unit's robust steel construction withstands corrosion and wear, so you get a long service life. It comes shielded on both sides to keep lubricants in and contaminants out, which minimises maintenance. A versatile deep-groove design means this bearing accommodates radial and axial loads in both directions, keeping your mechanical parts moving smoothly.

Features & Benefits

• Slim race width of 12mm means it slots easily into small spaces
• Simple single-row profile is easy to mount with no extra parts required
• Surfaces coated with manganese phosphate to keep lubricant attached to the bearing during use
• Limiting speed of 120rpm makes it suitable for use with fast-paced industrial machinery

Applications

• Machine welding
• Automated production lines
• Vehicle manufacturing and repair

What load rating does the bearing have?

With a static load rating of 6.55kN and a dynamic load rating of 11.9kN, this bearing is suited to the pressures of heavy machinery whether it's on the move or stationary.

Datasheet - 6005-2Z/VA201

SKF Bearing Designations

Catalogue - SKF Coatings

Catalogue - Rolling Bearings
