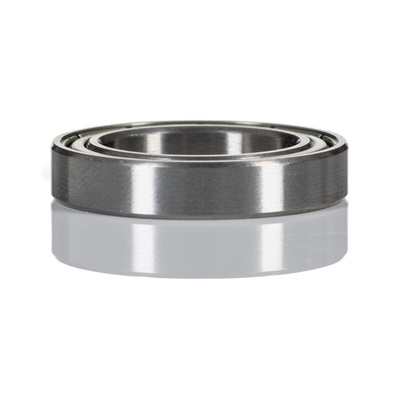

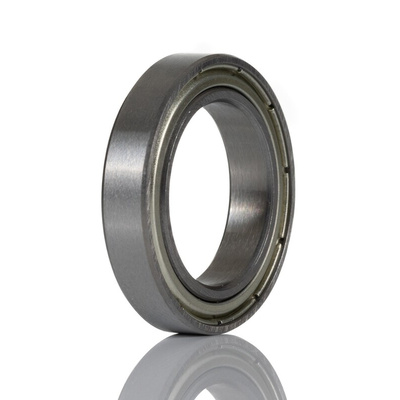

SKF 6015-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 75mm I.D, 115mm O.D

SKF Ball Bearing, Steel Construction, 41.6kN Dynamic Load Rating, 75mm ID, 115m OD - 6015-2Z/C3

Rotate dynamic loads of up to 41.6kN with this ball bearing from SKF. As a deep-groove type, it handles a heavy radial load in addition to a degree of axial load, making it a versatile option that's useful for turning shafts subject to forces from various directions. As both sides are shielded, you won't need to worry about contaminants getting into your bearing and gumming up the works. With an outside diameter of 115mm and an inside diameter of 75mm, this is an ideal option for taking the strain generated by larger components.

Features & Benefits

• Sheet metal cage keeps the load distributed evenly across the bearing and stands up to wear to offer a long service life
• Parallel bore for easy mounting with no need for a bearing sleeve
• C3 bearing clearance can help compensate for fit variations and reduce internal stress

Applications

• Agricultural equipment
• Factory machinery
• Materials handling

Can this bearing handle thermal expansion?

Thanks to its generous C3 clearance, this bearing can handle a degree of thermal expansion, making it a suitable option in applications where operating temperatures can vary significantly.

Datasheet - 6015-2Z/C3

SKF Bearing Designations
