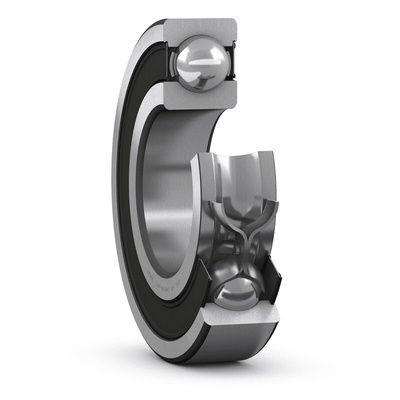

SKF 6211-Z/C3 Single Row Deep Groove Ball Bearing- One Side Shielded 55mm I.D, 100mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, Single Row, 55mm ID, 100mm OD - 6211-Z/C3

Need to move radial and axial loads in both directions? It's a cinch with this versatile ball bearing from SKF. Thanks to its deep-groove design, it can safely manage speeds of up to 14,000r/min while producing little friction. This keeps operating temperatures down to prolong the life of your bearing. The unit's low-friction properties also eliminate the need for grease altogether, letting you cut back on servicing. A non-contact shield on one side helps prevent contaminants such as dust and moisture from getting into the rolling parts and affecting performance.

Features & Benefits

• Hardwearing sheet metal cage maintains radial space between bearings to keep movement smooth
• Dynamic load rating of 46.2kN, so it resists very high forces when in motion
• SKF Explorer performance class component, meaning it's a safe bet for high-power density tasks
• Carbon chromium steel material for reliable hardness, rigidity and durability

Applications

• Industrial power tools
• Domestic electronics
• Renewable energy industry

What does this bearing's C3 internal clearance mean?

An internal clearance rating of C3 means this bearing has room for expansion between its raceways. This helps the assembly move freely and gives it the mechanical robustness needed to achieve limiting speeds of up to 9000r/min.
