SKF 6220/C3 Single Row Deep Groove Ball Bearing- Open Type 100mm I.D, 180mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, Open Ended, 100mm ID, 180mm OD - 6220/C3

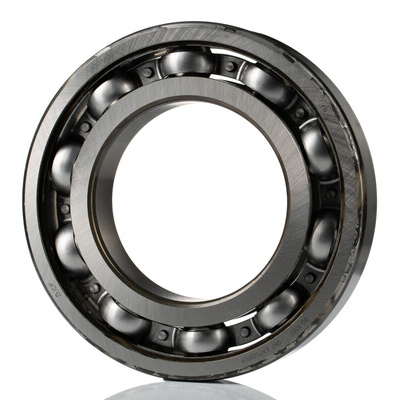

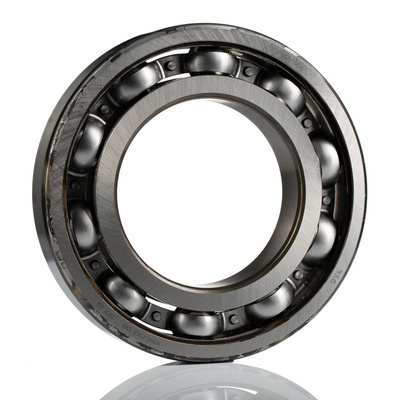

This deep-groove ball bearing from SKF is designed to accommodate radial and axial loads in both directions on a machine's shaft. It features a row of rolling elements set in a plain raceway to ensure smooth rotation with minimal friction and low noise. Thanks to the built-in cage, you can rest assured the balls will remain steady when running at high speeds. For durability, this cage is made from tough sheet metal. Dimensions of 100mm ID and 180mm OD make this unit an ideal option for larger rotating shafts.

Features & Benefits

• Made from hard-wearing steel to resist corrosion and withstand damp conditions
• Reference speed of 7500rpm and limiting speed of 4800rpm for reliable performance in fast-paced applications
• Open-ended design for easy inspection and relubrication without the need for dismounting

Applications

• Material handling
• Steel mills
• Oil and gas industry
• HVAC systems
• Industrial pumps

What's the load capacity of this deep-groove ball bearing?

This deep-groove ball bearing has a basic dynamic load rating of 127kN and a static load rating of 93kN, so it can withstand heavy demands in moving and stationary applications.
