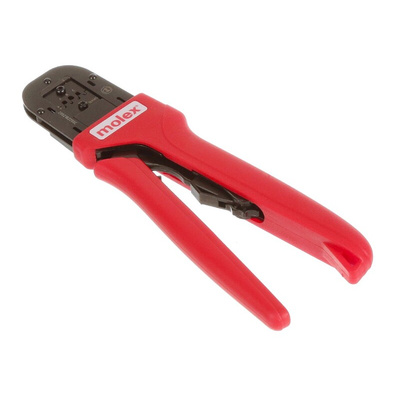

2002182200, Molex Mini-Fit Hand Ratcheting Crimp Tool for Mini-Fit Jr. Connector Contacts

Molex Ratcheting Hand Crimping Tool For Use With Mini-Fit Jr Crimp Terminals, 16AWG - Mini-Fit Series - 2002182200

Firmly secure your wire-to-board connections with this ratcheting hand crimping tool from Molex. It's designed for use with Mini-Fit Jr crimp terminals that connect wires with a 16AWG size. To use the device, place a wire into the crimp terminal in the centre of the tool and apply pressure to the handle. The ratchet mechanism pushes down, firmly crimping the wire so it's ready for positioning inside your crimp terminal.

• Sturdy plastic handle withstands manual pressure for long-lasting use
• Metallic ratchet material maintains contact with electrical wires
• Small crimping terminal prevents finger injury due to tool mishandling
• Suitable for both wire-to-wire and wire-to-board configurations in applications with space constraints
• Manual operation for reliable use with no power supply needed

Applications

• Communications equipment
• Commercial vehicle modules
• Industrial automation
• Domestic appliances
• Networking assemblies

Which crimp terminals is this ratcheting hand crimping tool compatible with?

This ratcheting hand crimping tool is compatible with all crimp terminals in the Mini-Fit and Mini-Fit Plus range with a 16AWG size.
