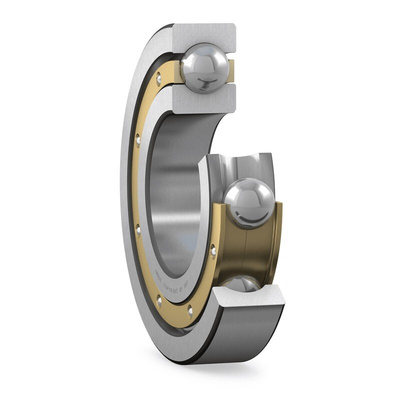

SKF 6034 M Single Row Deep Groove Ball Bearing- Open Type 170mm I.D, 260mm O.D

SKF Ball Bearing, 170 mm ID, 260 mm OD - 6034 M

Use this versatile ball bearing from SKF in situations where shafts rotate at high speed. It's designed to handle both axial and radial loads, and consists of a deep raceway channel with race dimensions similar to that of the balls that run inside it. Because of its simple design and high impact resistance, this ball bearing needs very little maintenance. As not much friction is produced, operation is smooth and quiet, and less energy is used. It's a useful component in the agricultural and automotive industries.

• Inside diameter of 170 mm, outside diameter of 260 mm, so ideal for compact applications
• Limiting speed of 4300 revolutions per minute (r/min), making it fit for high-momentum applications
• Heat stabilised up to at least +120°C, so suitable for harsh conditions
• Made of steel for strength and resistance to abrasion and corrosion

Application Information

• Gearboxes
• Wind turbines
• Pumps
• Washing machines
• Conveyors

Does this ball bearing need maintenance?

Deep groove ball bearings, if installed properly, don't need much maintenance. Before mounting, ensure the ball bearing is clean and properly lubricated. It's important to ensure proper alignment when mounted to avoid irregular vibration and noise.
