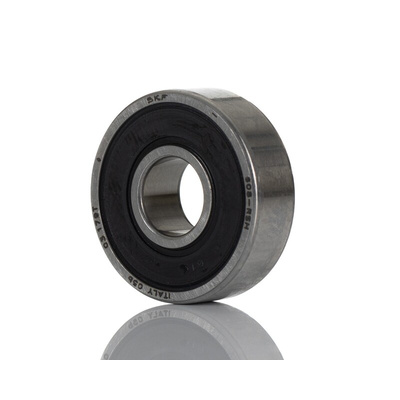

SKF 608-RSH Single Row Deep Groove Ball Bearing- One Side Sealed 8mm I.D, 22mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, 8mm ID, 22mm OD, 7mm Race Width - 608-RSH

Keep your equipment rolling along smoothly with this ball bearing from SKF. It can accommodate axial and radial loads in both directions to boost efficiency. This unit doesn't break a sweat in heavy-duty environments as its deep-groove construction helps to prevent friction and keep running temperatures low. A contact seal on one side blocks contaminants out and holds lubricant in, keeping maintenance to a minimum to save you time and effort. A static load rating of 1.37kN and a dynamic load rating of 3.45kN mean you can put this bearing to the test in light-duty applications.

• Bearing steel construction for resistance to impact and wear
• Compact inner diameter of 8mm and outside diameter of 22mm to fit into tight spaces
• Light weight of only 12g puts minimal strain on your machinery

Applications

• Automated assembly lines
• Automotive manufacturing
• Aerospace engineering
• Medical equipment

The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes. It has 8 mm ID and 22 mm OD.

What's the limiting speed of this ball bearing?

Bearing is of bearing steel
Cylindrical bore type

This part has a high limiting speed of 22,000rpm, which means it can handle the demands of fast-moving machinery.
