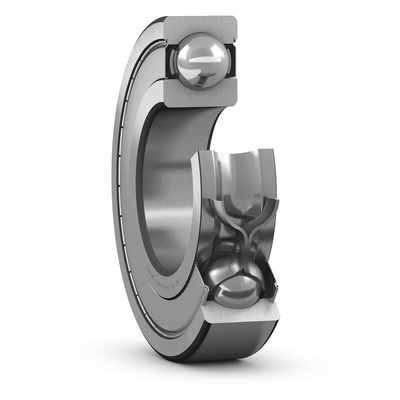

SKF 61802-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 15mm I.D, 24mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, 15mm ID, 24mm OD, 5mm Race Width - 61802-2Z

Need a way to keep things moving in your rotating equipment? Give this ball bearing from SKF a spin. It supports axial and radial loads in both directions, so it's a versatile piece of kit. A high limiting speed of 30,000rpm means it keeps up with demanding applications. Shields on each end boost the lifespan of the unit by keeping lubricant in and dirt out of the workings. Thanks to a compact inner diameter of 15mm and outer diameter of 24mm, it's this is a sure fit for small setups.

• Made from bearing steel for resistance to impact, wear and corrosion
• Light weight of just 7.3g minimises strain on your equipment

Applications

• Automotive manufacturing
• Automated factory processes
• Medical equipment

The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes. It has 15 mm ID and 24 mm OD.

Can this ball bearing support heavy loads?

Bearing is of bearing steel
Cylindrical bore type

This unit has a static load rating of 1.1kN and a dynamic load rating of 1.9kN, so it's just the thing for use in light-duty applications.

What's the advantage of a deep-groove ball bearing?

Deep-groove ball bearings generate lower levels of friction than other types of bearings. This helps to reduce heat and wear, which ensures an extended service life.
