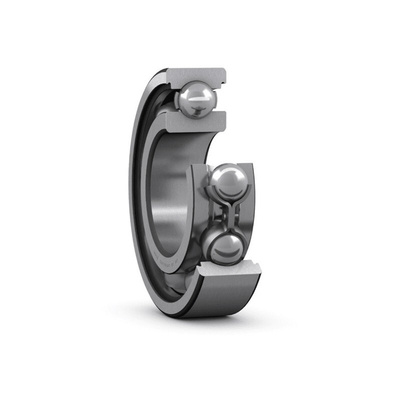

SKF 61808 Single Row Deep Groove Ball Bearing- Open Type 40mm I.D, 52mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, 40mm ID, 52mm OD, 7mm Race Width - 61808

Looking to keep your rotating parts in a spin? Choose this ball bearing from SKF. A limiting speed of 16,000rpm means it gives you the rapid rotation needed for fast-paced tasks. For versatility, it supports axial and radial loads in both directions. Thanks to its dynamic load rating of 4.49kN and static load rating of 3.75kN, you can count on it to shoulder demanding loads. The unit's robust bearing steel construction ensures resistance to wear and corrosion, so you get long-term performance in harsh industrial conditions.

• Light weight of 32g for minimal equipment strain and easy handling
• Deep-groove construction minimises friction to keep wear at bay

Applications

• Automotive repairs
• Aerospace engineering
• Pharmaceutical industry
• Industrial assembly and packaging lines

The SKF thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load. It has 40 mm ID and 52 mm OD.

How do I choose the right ball bearing for my application?

Bearing is of bearing steel
Cylindrical bore type

Pair the dimensions of the component with that of your shaft or axle. This ball bearing has an inner diameter of 40mm and an outer diameter of 52mm, so it's a good choice for smaller equipment. To keep things running smoothly, it's also important to make sure the bearing meets the load and force demands of your application.
