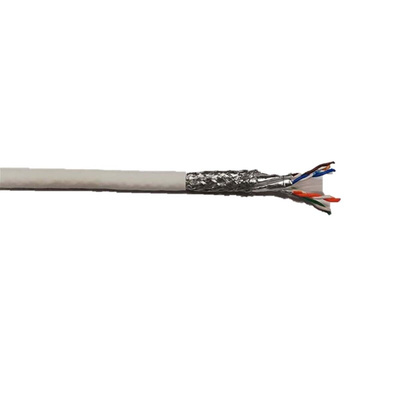

RS PRO Cat8 Ethernet Cable, S/FTP, White, 100m, IEC 60332-1

RS PRO 4 pairs S/FTP Cat8 LSZH Cable

This RS Pro cable is lightweight, rugged and reliable. Constructed to provide high-performance, It offers four pair twisted cable with rated temperature of 75℃ .The conductor dimension of 7/(0.16±0.008) mm. It has outer jacket thickness of 0.4 mm with jacket tensile strength 9 Mpa.It has electrical characteristics such as maximum delay skew of 7.5 ns/30m with maximum conductor DC resistance 14.2 Ω/100m.

Features and Benefits

• Number of pairs: 4


• Minimum insulation resistance: 5000 MΩ·m


• Maximum operating voltage: UL 300 V


• Twisting lay length: ≦30mm


• Cabling lay length: ≦200mm

• Rated temperature: 75℃

• Reference standard: IEC 61156-9&ISO/IEC 11801

Applications:

• 100Base-T4

• 100Base-TX

• 100VG-AnyLAN\n

• 1000Base-T

• 1000Base-TX

• 155Mbps ATM

• 622Mbps ATM

• 10 Gb Ethernet\n

• 40 Gb Ethernet\n
