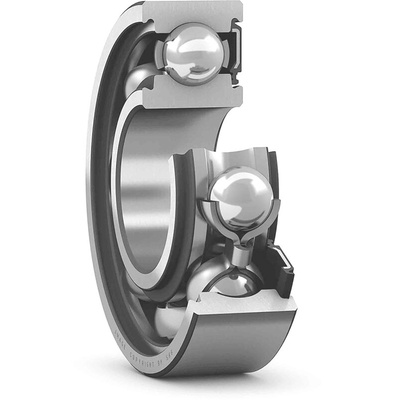

SKF 626-RSH Single Row Deep Groove Ball Bearing- One Side Sealed 6mm I.D, 19mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, 6mm Race Width, 6mm ID, 19mm OD - 626-RSH

Get your machine shaft rolling with this deep-groove ball bearing from SKF. It balances axial and radial loads in both directions, so you can be sure it takes the strain from all angles. Thanks to its compact inner diameter of 6mm and outer diameter of 19mm, it's just the thing for use with smaller bore sizes. As the bearing is sealed on one end, you can easily top up the lubricant without it leaking out from the other side, helping to keep things running smoothly.

• Deep-groove design limits friction to limit noise, wear and vibration
• Bearing steel construction for resistance to abrasion and impact
• Limiting speed of 24,000rpm for use in high-speed applications
• Light weight of 8.4g to put minimal strain on your equipment

Applications

• Mining and quarrying industries
• HVAC systems
• Printing presses
• Industrial conveyors

The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes. It has 6 mm ID and 19 mm OD.

Can this bearing handle heavy loads?

Bearing is of bearing steel
Cylindrical bore type

This bearing has a dynamic load rating of 2.34kN and a static load rating of 0.95kN, so you can rest assured it carries light-duty to medium-duty loads without a hitch.
