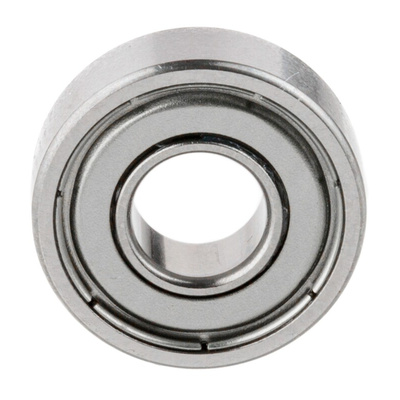

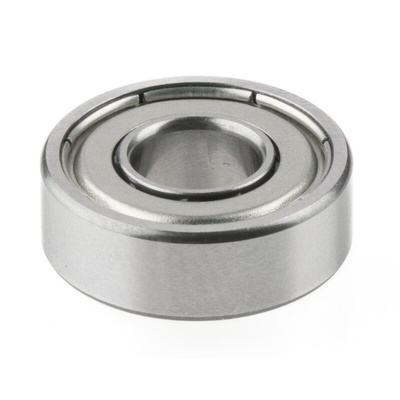

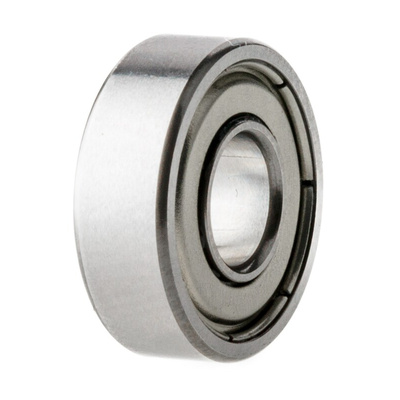

SKF 628/5-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 5mm I.D, 11mm O.D

SKF Deep-Groove Ball Bearing, 5mm ID, 11mm OD - 628/5-2Z

Choose this shielded deep-groove ball bearing from SKF for the reliable support of axial and radial loads in either direction. Its high-carbon chromium bearing steel balls deliver enhanced strength and performance, while the advanced raceway reduces friction for higher speed capacity. This unit's precision components ensure reduced noise and minimal vibration, meaning it can work at high and very high speeds.

• Dynamic load rating of 0.468kN and static load rating of 0.143kN for a versatile range of industrial uses
• Stainless steel balls resist corrosion if exposed to moisture or chemicals
• Easy mounting for greater convenience
• Double-shielded to keep out dirt and debris, reducing maintenance needs

Applications

• Agricultural equipment
• Industrial automation
• Conveyor systems and handling
• Household appliance manufacturing

What's the difference between a dynamic load and a static load?

A dynamic load rating measures the maximum load a bearing can tolerate at room temperature when the contact surfaces are in motion. It's used to determine the basic rating life of the bearing. Static load rating, on the other hand, measures the maximum load the bearing can tolerate at room temperature when not in motion before the bearing becomes damaged.
