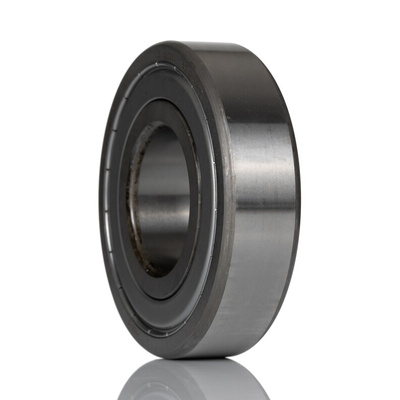

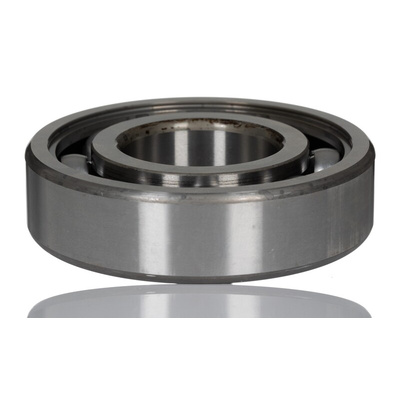

SKF 6308-Z Single Row Deep Groove Ball Bearing- One Side Shielded 40mm I.D, 90mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, One-Sided Shielding, 40mm ID, 90mm OD - 6308-Z

Want to put a stop to noise and friction? Trust this ball bearing from SKF to handle moving parts of your equipment. It's a deep-groove type that handles both axial and radial loads, so it's a versatile workmate. By rotating along your machine's shaft, it distributes the weight to improve performance. The bearing's 24kN static load rating and 42.3kN dynamic load rating make it the right choice for heavy-duty applications. Its stainless steel body withstands corrosion and impact without breaking a sweat, so you can rely on it for long-term performance, even in rugged settings.

Features & Benefits

• Inside diameter of 40mm makes it suitable for medium-sized shafts
• Reference speed of 17,000r/min and limiting speed of 11,000r/min for use in fast-paced machinery
• One shielded end prevents dust and contaminants from impacting performance
• SKF Explorer performance class means it takes the strain of high speeds and heavy loads without suffering damage

Applications

• Automotive industry
• Agricultural equipment
• Printing and binding machinery

What's the temperature tolerance of this ball bearing?

All SKF deep-groove ball bearings are heat-stabilised up to at least +120°C, so you can rest assured this unit will work reliably and retain its rigidity in demanding conditions.

Datasheet - 6308-Z

SKF Bearing Designations

Catalogue - SKF Coatings

Catalogue - Rolling Bearings
