Process Control Current Calibrator Martindale TEK300

Designed for process control instrumentation and general purpose signal injection applications. Enables the user to test, calibrate and troubleshoot in a variety of environments. Features include

Sink, source and monitor modes for up to 20mA
Overload protection for additional safety
ABS case with clear 3 digit LCD display
Battery condition and error indication LEDs
Requires 2 x PP3 alkaline batteries
Test leads not included

Note

Capable of withstanding DC voltages up to 50V but can be damaged by AC inputs.

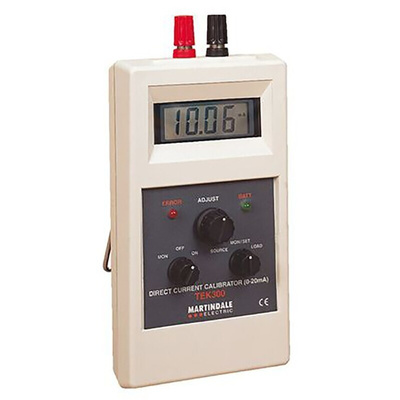

Martindale Direct Current Calibrator

The Martindale direct current calibrator is able to sink or source a current up to 20mA. It is intended for process control instrumentation and general purpose signal
injection applications. It has a monitor mode facility incorporated into the design, whereby the current (0mA to 20mA) in the process loop can be monitored and read directly from the digital display. This device is also fully protected against inadvertent misuse. This low-cost unit offers exceptional value for money means of delivering and measuring current ranging between 0mA and 20mA currents. This makes it ideal for cost-effective application in testing, calibrating and troubleshooting in a wide range of process control environments.

Features and Benefits

Sink, source and monitor modes ranging between 0mA and 20mA F. S. (+0.1%)
DC/DC converter output of 28.5V (+0.1V)
Resolution of 10μA
Overload protection for additional safety
ABS case with clear three digit LCD display
Temperature drift 150ppm°C
Linearity of 0.15%
Output noise (typically) of 4mV p/p
Battery condition and error indication LEDs
Requires two PP3 alkaline batteries
Capable of withstanding DC voltages up to 50V but can be damaged by AC input
Operating temperature ranges between 0°C and 50°C

Applications

Process control automation
Manufacturing
Instrumentation

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
