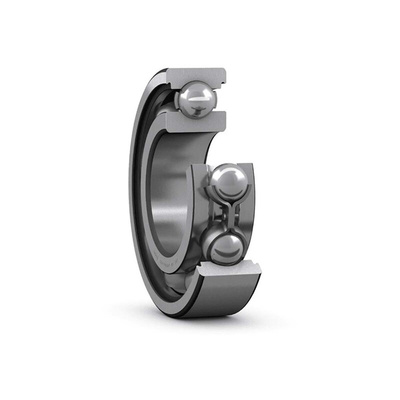

SKF 16101 Single Row Deep Groove Ball Bearing- Open Type 12mm I.D, 30mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, 60,000r/min Reference Speed, 12mm ID, 30mm OD - 16101

Cut down on friction in your industrial equipment's moving parts with this deep-groove ball bearing from SKF. This single-row component rolls along your machine's shaft, carrying the load during rotation to reduce wear and improve performance. It supports reference speeds up to 60,000r/min, making it your go-to for fast-paced operations. The bearing's tough stainless steel body holds its own against rust and impact, so you can rest assured of long-lasting use, even in rugged settings. With an inner diameter of 12mm, it's the right fit for small-sized shafts.

Features & Benefits

• Static load rating of 5.07kN and dynamic load rating of 2.36kN indicate it's well-suited to heavy-duty applications
• Handles both axial and radial loads for versatility
• Open-ended design makes it easy to inspect and lubricate during operation
• 8mm race is precision-engineered for the smooth movement of rolling parts

Applications

• Assembly lines
• Power tools
• Medical equipment

What should I consider when mounting this ball bearing?

When mounting this unit, you'll need to make sure that it's properly aligned on the shaft to get optimum performance. It's also important that the shaft fits the bearing's inner diameter correctly – if it's too big or small, you'll get premature wear.

Datasheet - 16101

SKF Bearing Designations

Catalogue - SKF Coatings

Catalogue - Rolling Bearings
