SKF Cam Follower 361202 R

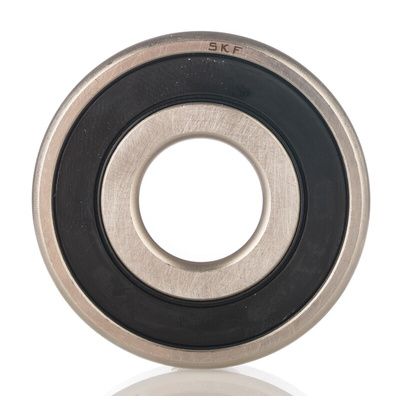

SKF Ball Bearing, Deep-Groove Bearing Type, Single Row, 15mm ID, 40mm OD - 361202 R

Support high load capacities with this ball bearing from SKF. It has a 15mm inner diameter and a 40mm outer diameter and accommodates radial and axial loads in both directions for consistent performance. A crowned running surface helps to ensure stress is evenly distributed to prolong the unit's service life. This also increases load-carrying capability in heavy-duty applications. Sealed ends ensure that contaminants are kept out of the workings, making this a reliable choice. It has C3 clearance, which means there's adequate expansion room between the races to accommodate movement and heat generation.

Features & Benefits

• 48g weight puts minimal strain on machinery
• Pre-greased, so saves installation and maintenance time
• Made from hardwearing bearing steel for durability

Applications

• Cam drives
• Conveyor systems
• Electric motors
• Domestic appliances
• Food and beverage processing

What's the difference between a deep-groove and an angular-contact ball bearing?

An angular contact bearing has an asymmetric cross-section. It supports loads that aren't perpendicular to the bearing axis but which sit at a contact angle. Deep-groove designs support loads in both directions.

When should I replace a ball bearing?

You should replace your ball bearing when you notice clicking or humming noises, vibrations or misalignment, as these indicate wear.
