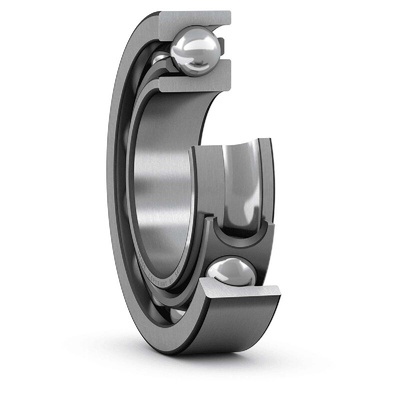

SKF 7320 BEGAF Single Row Angular Contact Ball Bearing- Open Type 100mm I.D, 215mm O.D

SKF Ball Bearing - 100 mm ID, 215 mm OD - 7320 BEGAF

Use this angular contact ball bearing from SKF when you need to support a high axial load. In this unit, the inner and outer raceways are displaced relative to each other in the direction of the bearing axis, which allows it to endure a combined radial and axial load. The bearing's ability to carry axial load gets higher as the contact angle of the axial load increases, which makes it a resilient option. This bearing has a versatile race width of 47 mm and is ideal for use with high-speed machinery.

• Open end type, so it can be greased as needed
• Single-row design offers a range of uses and offers a long service life
• Cylindrical bore type, for ease of installation
• Can be used at higher operational speeds than other types of bearing

Application Information

• Wind turbines
• Industrial pumps
• Gearboxes, electric motors and clutches in cars

Are angular contact bearings noisy?

No, they're actually very quiet in operation. Because angular contact bearings compensate internally for angular misalignment and can accommodate axial shaft expansion, they're able to run quietly and coolly, with a minimal amount of friction.
