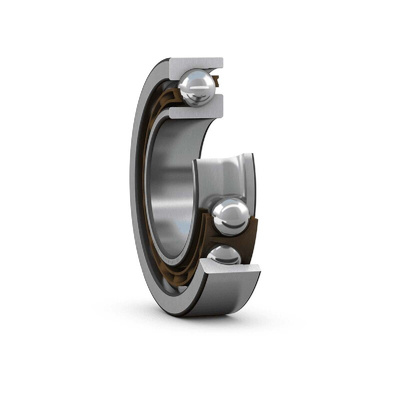

SKF 7322 BECBP Single Row Angular Contact Ball Bearing- Open Type 110mm I.D, 240mm O.D

SKF Angular Contact Ball Bearing, 110 mm ID, 240 mm OD - 7322 BECBP

This angular contact bearing from SKF is ideal for situations where you need to apply pressure along the shaft as well as from the side. The 105 mm-diameter inner raceway is displaced relative to the 240 mm-diameter outer raceway, meaning the bearing can support a radial load and an axial load acting simultaneously. As the contact angle increases, so does the axial load carrying capacity of the ball bearing. Angular contact bearings are suitable for high-speed applications including gearboxes, clutches and electric motors.

• Limiting speed of 3600 r/min makes it suitable for high-speed applications
• Mass bearing of 10 kg offers a wide range of suitable uses, from light tasks to heavy-duty applications
• Cylindrical bore fits directly onto the shaft for ease of installation
• Open-end type bearing allows quick and simple lubrication
• Made of strong steel for hardness and resilience

Application Information

• Machine tooling
• Materials handling
• Steel mills

When should I choose an angular contact bearing?

Angular contact bearings are used in applications where accuracy and durability are critical factors, for example in machine tool spindles, centrifuges and vacuum pumps.
