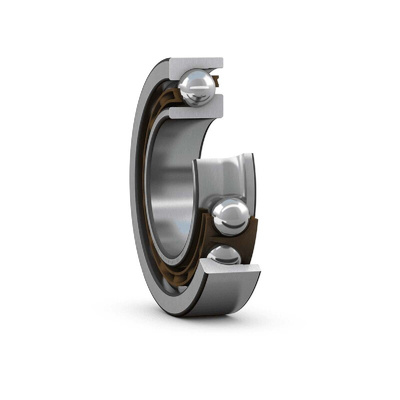

SKF 7322 BEP Single Row Angular Contact Ball Bearing- Open Type 110mm I.D, 240mm O.D

SKF Angular Contact Ball Bearing, 110 mm ID, 240 mm OD - 7322 BEP

When you need to accommodate a combined radial and axial load at high speeds, choose this angular contact bearing from SKF. The raceway is 50 mm wide and incorporates an inner raceway with a 110 mm diameter and an outer raceway with a 240 mm diameter. Because these are displaced relative to each other, the bearing can support loads along the shaft and from the side, acting simultaneously. It's a cylindrical bore type, which gives it extra strength when carrying radial loads.

• Limiting speed of 3200 r/min makes it suitable for high-speed applications
• Mass bearing of 10 kg means it can handle heavy-duty work
• Single row design makes this suitable for high-speed applications
• Made of quality bearing steel for reliability and hardness
• Open-type bearing allows for easy lubrication

Application Information

• Agricultural machinery
• Steel mills
• Wind energy industry, including turbines

What kind of machinery should I use an angular contact bearing in?

Angular contact bearings are the ideal choice for machinery where you need to ensure a high degree of accuracy as well as durability. They're commonly found in centrifuges, machine tool spindles and vacuum pumps.
