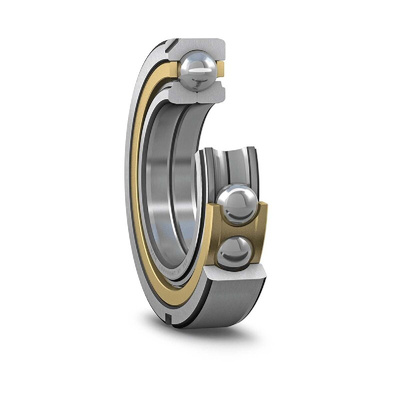

SKF QJ 318 N2MA Single Row Angular Contact Ball Bearing- Open Type 90mm I.D, 190mm O.D

SKF Angular Contact Ball Bearing, 90 mm ID, 190 mm OD - QJ 318 N2MA

This single-row angular contact ball bearing from SKF is designed to handle simultaneous axial and radial loads with ease. The inner and outer raceways are offset, creating four possible contact angles to accommodate the dual loads. The smooth cylindrical bore and high-grade balls limit friction and keep noise to a minimum, allowing smooth, efficient operation even at high speeds. This product has been thoroughly tested to ensure quality and strict compliance with all British and EU electrostatic discharge standards.

• High dynamic load rating of 285 kN, denoting it can withstand more revolutions for a long lifetime
• Open-end type bearing, for easy lubrication
• Manufactured from quality steel for high-strength and corrosion resistance

Application Information

• Agricultural machinery
• Gearboxes
• Electric motors

When should I use single-row angular contact ball bearings?

Because they're designed to support higher axial forces, single row angular contact ball bearings are especially suited to applications that involve combined loads, or where moderate to high axial loads will be carried on one side. Under higher radial and axial loads, higher speeds are recommended for optimal performance.
