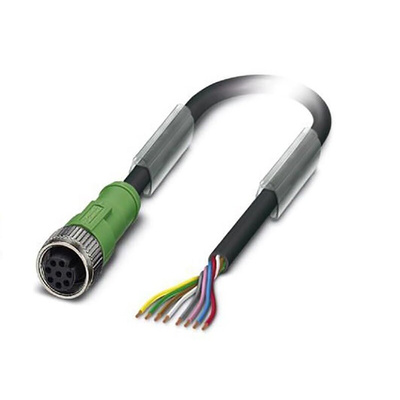

1520369, Phoenix Contact Straight Female 8 way M12 to Unterminated Sensor Actuator Cable, 5m

Phoenix Contact Sensor Actuator Cable, 30V AC/DC Voltage Rating, 8 Core - SAC-8P- 5,0-PUR/M12FS - 1520369

Use this cable from Phoenix Contact to quickly and reliably connect sensors and actuators in your industrial setup. One end is fitted with an M12 push-pull connector. This means you can lock the cable in place without the need for tools, making it easy to install in tight spaces. It has standard A-coding for universal compatibility with industrial systems. The other end is free for wiring to your equipment or fitting with your choice of connector.
The cable is a twisted-pair type with tinned copper braiding to keep it flexible and dependable. Encased in a durable PUR sheath with PP insulation, it's resistant to acids, alkaline solutions and solvents commonly found in manufacturing and production areas. It's also hydrolysis-resistant for use in damp environments. An NBR seal minimises the chance of dirt and moisture getting inside. This gives the cable a maximum IP68 rating, assuring you of dust-tight connections that can withstand powerful jets of water.

Features & Benefits

• Self-extinguishing and halogen-free materials to maximise fire safety
• Suitable for flexible and fixed installations for versatility
• Colour-coded conductors for easy wiring

Datasheet - 1520369

2080505_Instruction Sheet_en

Instruction Sheet - Length Tolerances
