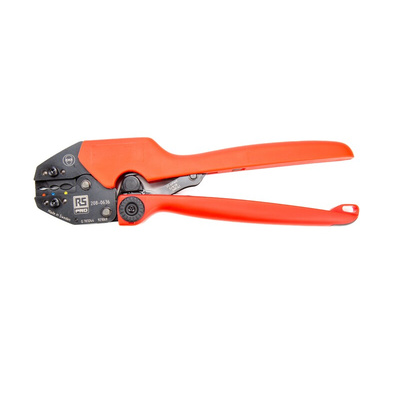

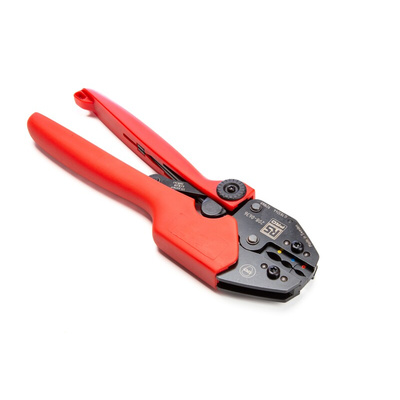

RS PRO Hand Ratcheting Crimp Tool for Insulated Spade Connectors, 0,5 → 6mm² Wire

RS PRO Ratchet Crimp Tool

The RS PRO range of crimp tools keeps on improving. We are pleased to introduce a new selection of crimp tools perfect for ensuring a professional install for wires and connectors. Our offer included this high spec ratchet action crimp tool compatible with heat shrink connectors.
Upon inspection, this crimp tool is made from high-quality material, feel comfortable in the hand and the ratchet has a precise action giving you the confidence that the union between cable wire and connector will be of the highest standard.

How does it work?

This crimp tool has three contact locators which are colour codes within the crimp die set ranging from wire size: 0.5 - 6 mm². Simply insert the wire inside the terminal and place it into the appropriate locator, then crimp together. The ratchet action is adjustable and useful for calibration. Complete the install with a heat gun to shrink and seal.

Features and Benefits

• High strength, through-hardened alloy steel construction
• Unique mechanism significantly reduces hand force
• Versatile and easy to use for right or left hand users
• The non-slip pad holds the tool in place when leveraging on a work surface
• Full cycle crimp mechanism to ensure consistent, reliable crimp
• Ratchet release mechanism to clear miss-crimps and obstructions
• Precision eccentric adjustment for consistent performance and the ability to calibrate
• Hole in handle allows attachment of safety strap
• Each tool has a unique serial number for traceability

Specification

• Length: 256 mm/10.08 in.
• Width: 22 mm/0.87 in.
• Height: 80 mm/3.15 in.
• Weight: 558 gr/1.23 lb
• Cable wire size: 0.5-6 mm² / AWG 22-AWG 10
• Crimp dimensions mm/mm2: 0.50 – 1.5 mm²/1.5 – 2.5 mm²/4 - 6 mm²
• Crimp dimensions inch/AWG: AWG 22 - AWG 16/AWG 16 - AWG 14/AWG 12 - AWG 10
• Connector: Heat shrink connectors
• Life span, cycles: 50,000

Applications

Electrical & Electronic Servicing
Cable & Wire Installation
Maintenance
DIY Projects
