Series, RS PRO Hand Crimping Tool for Machined Contact

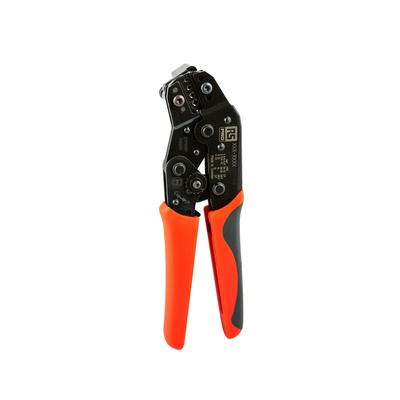

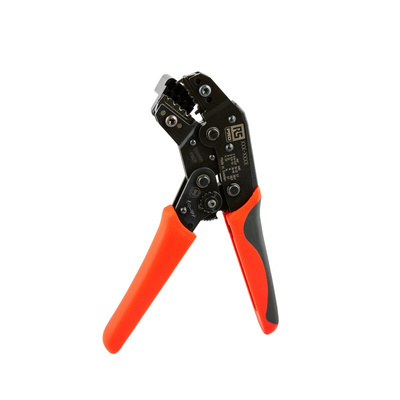

RS PRO Ratchet Crimp Tool
The RS PRO range of crimp tools keeps on improving. We are pleased to introduce a new selection of crimp tools perfect for ensuring a professional install for wires and connectors. Our offer included this high spec ratchet action crimp tool compatible with Type D and E turned pin and socket connectors.Upon inspection, this crimp tool is made from high-quality material, feel comfortable in the hand and the ratchet has a precise action giving you the confidence that the union between cable wire and contact will be of the highest standard.
How does it work?

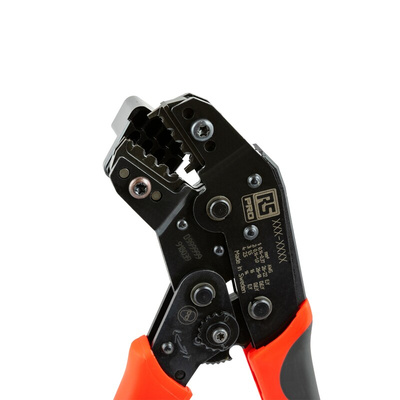

This crimp tool has four contact locators (0.14 - 0.37 mm², 0.14 - 1.0 mm², 1.5 mm², 2.5 mm²), place the required contact into the right locator which is held in place then insert the wire and crimp together. Use the precision eccentric adjustment for consistent performance and ability to calibrate.
Features and Benefits
Four crimp nests for precision crimping Adjustable locator for male and female contacts High strength, through-hardened alloy steel construction Versatile and easy to customize for right hand or left-hand users Full cycle crimp mechanism to ensure consistent, reliable crimp Ratchet release mechanism to clear miss-crimps and obstructions Precision eccentric adjustment Each tool has a unique serial number for traceability
Specification
Length: 198 mm/7.8 in. Width: 43 mm/1.69 in. Height: 59 mm/2.32 in. Weight: 369 g Wire size: 0.14-2.5 mm² / AWG 26-AWG 14 Crimp nest dimensions mm/mm2: 0.14 - 0.37 mm², 0.14 - 1.0 mm², 1.5 mm², 2.5 mm² Crimp dimensions inch/AWG: AWG 26 - AWG 22/AWG 26 - AWG 18/AWG 16 / AWG 14 Connector: Turned/machined contacts Description: Type D and E pins and sockets Life span, cycles: 50,000
Applications
Electrical \u0026 electronic ServicingCable \u0026 Wire InstallationMaintenanceDIY Projects
