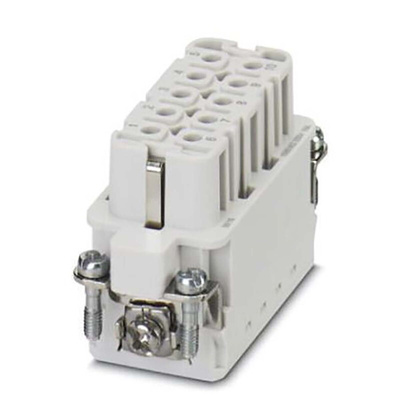

1585362, Phoenix Contact Heavy Duty Power Connector Insert, 16A, Female, HC Series, 10 Contacts

Phoenix Contact Heavy-Duty Power Connector Insert, 16A Current Rating, 10 Contacts - HC-A10-I-PT-F - 1585362

Securely hold the connectors of your contacts in place using this insert from Phoenix Contact. It can accommodate up to 10 connectors at once, making it a versatile choice. Thanks to its 16A current rating, the unit is a reliable choice for heavy-duty systems. For added flexibility, you can use it with both solid and stranded conductors. The push-in connection lets you assemble it by simply inserting the connectors into the device, eliminating the need for specialist tools.
Copper alloy contacts offer reliable electrical conductivity, while silver plating makes this component resistant to corrosion. It has an insertion/withdrawal cycle of ≥500, so you can be sure of long-term performance. A broad operating temperature range between -40°C and +125°C means it's safe to use in demanding environments. You'll find this insert used in automated control processes and robotics applications.

• Polycarbonate contact-carrier is wear-resistant for extended service life
• Rated surge voltage of 4kV to withstand current overload
• Flammability rating of UL94 V0 to stop the spread of fire
• Compatible with wire sizes between 26 and 14AWG for versatility
