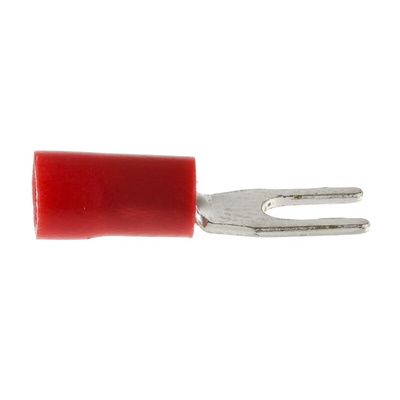

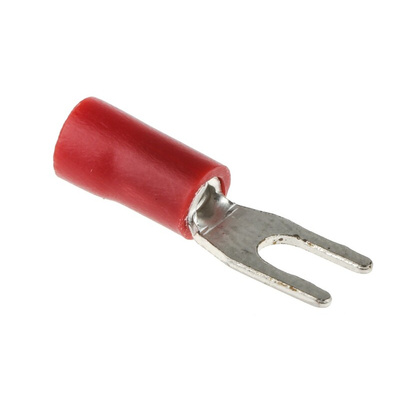

RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, M3 Stud Size Vinyl, Red

PVC Funnel Entry on Reels

A PVC Funnel Entry range of crimps on Reels. Available in a variety of the most popular sizes.

Wire sizes:
Red 0.5-1.5mm²
Blue 1.5-2.5mm²
Yellow 4-6mm²

RS PRO Insulated Crimp Spade Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, M3 Stud Size Vinyl, Red

This RS PRO insulated crimp spade connector is a reliable way to connect electrical wires with screws and studs. You just have to insert the stranded wire into the tube and connect the fork with the screws to link your signal.

The crimp spade terminal is made from copper with tin plating to ensure reliable conduction. It suits wires from 16 AWG and 22 AWG. Colour-coded according to size, the connector's red vinyl insulation material indicates it's designed for wire sizes ranging from 0.5 mm² to 1.5 mm². The spade has a thickness of 0.8 mm and the connector has an overall length of 20.5 mm and a width of 5.7 mm. An M3 stud size means the terminal has a diameter of 0.8 mm.

Crimp spade connectors are commonly used during electrical installations and repairs for wiring harnesses and electrical panels.

Features and Benefits

• 16 to 22 AWG (American Wire Gauge)
• Tin contact plating
• Copper contact material
• Red vinyl insulation
• Suits a wire size range of 0.5 mm² to 1.5 mm²
• Overall length of 20.5 mm
• Width of 5.7 mm
• Spade thickness of 0.8 mm
• M3 stud size (0.3 mm diameter terminal)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
