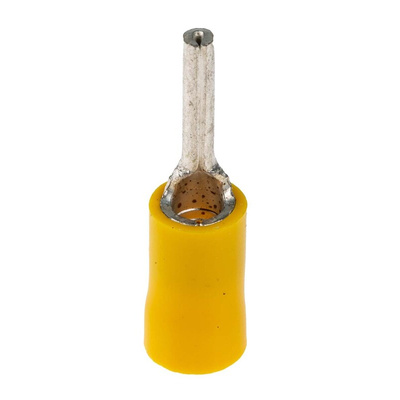

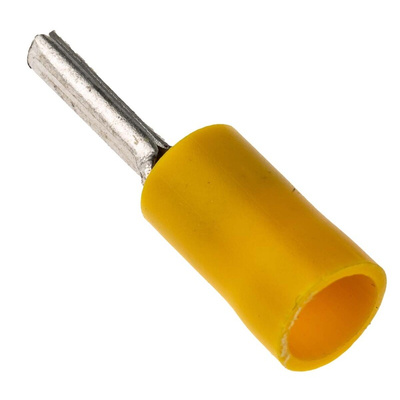

RS PRO Insulated, Tin Crimp Pin Connector, 2.5mm² to 6mm², 12AWG to 10AWG, 2.6mm Pin Diameter, 15mm Pin Length, Yellow

RS PRO Insulated, Tin Crimp Pin Connector, 2.5 mm² to 6 mm², 12 AWG to 10 AWG, 2.6 mm Pin Diameter, 15 mm Pin Length, Yellow

This RS PRO insulated crimp pin connector makes terminating your electrical wires easy and safe. As the connector is desoldered, all you need to do is insert your stripped wire into the terminal for it to work.

The single unshrouded connector has a copper contact material that’s plated with tin to transfer electrical signals ranging from 10 AWG to 12 AWG. The outer PVC insulation material is coloured yellow for easy identification as a terminal to suit a wire range of 2.5 mm² to 6 mm². Overall, the connector measures 28 mm. Its crimped-end pin measures 2.6 mm in diameter and 15 mm in length.

You'll find crimp pin connectors such as these widely used in military and industrial settings as they're a durable and practical way to quickly create reliable electrical connections.

Features and Benefits

• 10 to 12 AWG (American Wire Gauge) range
• Tin contact plating
• Copper contact material
• Suitable for a wire range of 2.5 mm² to 6 mm²
• Overall length of 28 mm
• Pin diameter of 2.6 mm
• Pin length of 15 mm
• Yellow PVC insulation

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
