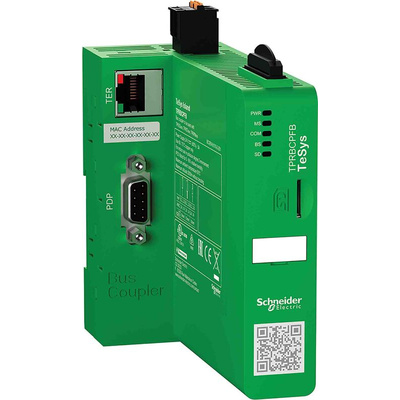

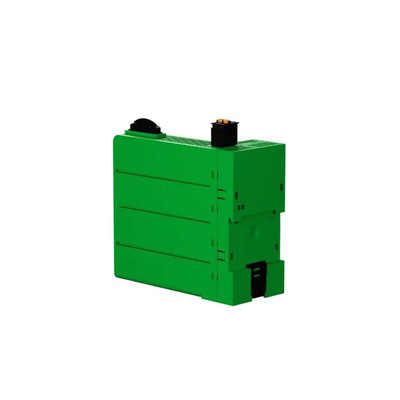

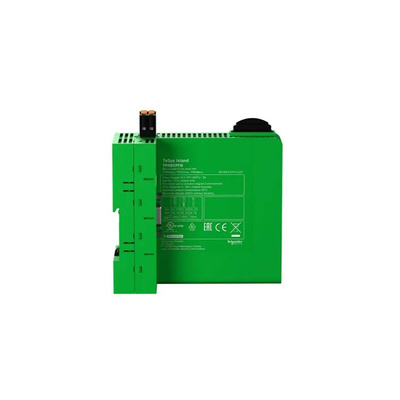

TPRBCPFB, Schneider Electric TPRBC Series Bus Coupler, 24 V

Schneider Electric Bus Coupler - TeSys Island

To assist in the management of a complete island, contributing to the TeSys Island concept is this bus coupler. The coupler acts as the point of connection between a group of starters and an automation controller. Allowing the system to include up to 20 modules, this bus coupler has a Profibus DP communication port protocol.

Features & Benefits

• The functions that are available for this bus coupler are: Full integration with SoMove for the control of the island, one single 24V DC power supply for the complete island, one fieldbus port for communication with an automation controller and one service port with an embedded webserver for maintenance
• Compatible with: TPRST motor starter, TPRSS SIL motor starter, TPRPM power module, TPRSM SIL interface module, TPRVM voltage interface module, TPRAN analog IO module and TPRDG digital IO module
• Features 1 SUB-D 9, 1 RJ45 and micro SD card port integrated connection types
• Local signalling is accomplished via LEDs (Green, yellow and red)
• 24 V DC rated supply voltage
• 3 A maximum rated current and 20.4 to 28.8 V DC rated supply voltage
• Reverse polarity protection for power supply

Discovering TeSys Island

A concept that is dedicated to control and monitor machines and processes, each TeSys Island product plays an important role to switch, protect and manage motors and electrical loads up to 80 Amps (AC3) within an electrical control panel.
• A fantastic digital load management solution that enables your machines and processes to be smarter and reliable
• TeSys Island provides a fully digitised and object-orientated load management system and is industry 4.0 compliant data provider
• Through the use and installation of TeSys Island, users can reduce time to market and enable OEMs to move forward, faster in their industry 4.0 journey
• Through the TeSys Island approach, users will be able to simplify the function of the applications and system configuration as well as reducing the number of engineering tasks
• TeSys Island enables a faster machine engineering and installation phase
• The TeSys Island concept can also be easily integrated into 3rd party automation systems, supporting several fieldbuses such as Ethernet/IP, Modbus TCP, PROFINET and PROFIBUS
• Provides users access to all relevant load data for advanced system diagnostics

A little more info...

• Manages motors electrical loads of up to 80 A (AC-3)/37 kW/40 hp
• Features fieldbus connectivity via bus coupler for Ethernet/IP, Modbus TCP, PROFINET or PROFIBUS
• There are relevant load data available, such as current, power, energy and advanced diagnostic data
• The TeSys Island avatar objects and dedicated configuration and maintenance tools provide simplified engineering and commissioning
• Users can have up to 20 modules on 1 island mounted on DIN rail (up to 112 cm length)
• Thanks to the fill connectivity over fieldbus, no control or auxiliary wiring are required
• There is no need for mechanical dials or dip switches due to all the adjustments and settings being digitised
• A limited number of references including 5 starter sizes, digital & analog I/Os and voltage measurement modules
• Embedded Cybersecurity (Achilles Level 2)
• There is a SIL starter available, designed for the integration into functional safety systems which are according to IEC 61508, IEC 62061 and ISO 13849-1, including TUV certification (Stop 0 and 1 with wiring categories 1 to 2, suitable for PL c, d and SIL level 2
• Fully compliant to international standards (IEC / UL / CSA 61010, IEC / UL / CSA 60947, GB/T14018)
• Please refer to the technical references for more information
