RT/57225/M/50, Norgren Pneumatic Roundline Cylinder - 25mm Bore, 50mm Stroke, RT/57210/M/25 Series, Double Acting, Пневмоцилиндр

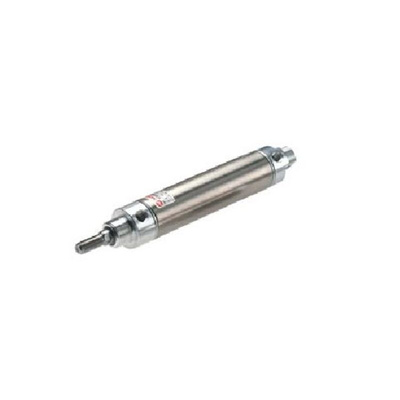

IMI Norgren Double-Acting Roundline Cylinder, 25mm Bore, 50mm Stroke - RT/57210/M/25 Series - RT/57225/M/50

Looking for a reliable and durable cylinder to use in your pneumatic system? Opt for this double-action roundline cylinder from IMI Norgren, with its high-strength design and robust double-crimped end caps. Buffer cushioning serves to prolong the life of the cylinder, while low-friction seals have a long life, so they keep performing efficiently throughout the unit's working life. A standard magnetic piston helps deliver control system versatility. Compact dimensions, with a length of 128.5mm and a diameter of 26.5mm, saves 20% of space over the basic length of a corresponding ISO/VDMA cylinder.

Features & Benefits

• Operating temperature range of -10°C to +80°C makes it suitable for harsh environments
• Maximum operating pressure of 10 bar for use with demanding applications
• Stainless steel piston rod resists corrosion in damp or humid conditions

Applications

• Industrial processing
• Production lines
• Positioning lightweight objects

What's a double-acting cylinder?

A double-acting cylinder like this one has two ports, so compressed air can be used to move the piston back and forth. It offers a greater degree of control than a single-acting cylinder, which has just a single port and uses a spring to return the piston.

Datasheet
