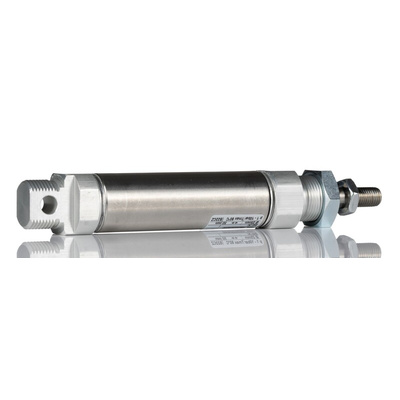

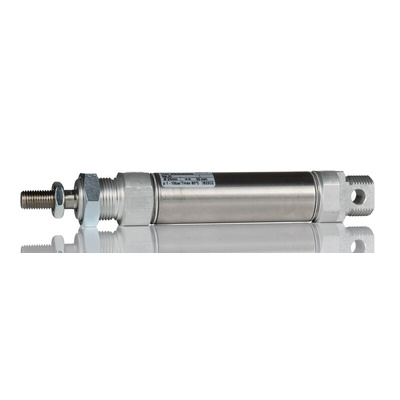

RT/57225/M/80, Norgren Pneumatic Piston Rod Cylinder - 25mm Bore, 80mm Stroke, RT/57210/M/25 Series, Double Acting, Пневмоцилиндр

IMI Norgren Pneumatic Piston Rod Cylinder, 1 to 10 Bar Operating Pressure Range, Stainless Steel Rod - RT/57225/M/80

Need a compact device to move loads in your industrial setup? Go for this pneumatic piston rod cylinder from IMI Norgren. Thanks to its short length of 158.5mm, it's your best bet for situations where space is at a premium. It's a double-acting cylinder with two ports, so it alternates air pressure between both ends, making it the right choice for applications that need back-and-forth movement. Thanks to its stainless steel piston and aluminium end covers, you can rest assured that this robust unit takes mechanical impact in its stride.

Features & Benefits

• 80mm stroke length makes it suitable for short-stroke applications
• Operating pressure range between 1 and 10 bar for flexible use in light-duty settings
• Nitrile rubber seals and O-rings prevent leakages and block out contaminants to ensure optimal performance
• Buffer cushioning prevents damage to the cylinder from piston movement

Applications

• Object rejection devices
• Material handling equipment
• Robotics and automation systems

How much force does this cylinder have?

At 6 bar air pressure, this cylinder delivers up to 294N outstroke force and 247N instroke force, so it can handle substantial loads.

Datasheet
