Norgren Piston Rod Clevis QM/57040/25, To Fit 40mm Bore Size

IMI Norgren Piston Rod Clevis, 2 to 10 Bar Operating Pressure Range, M12x1.25 Piston Rod Thread - QM Series - QM/57040/25

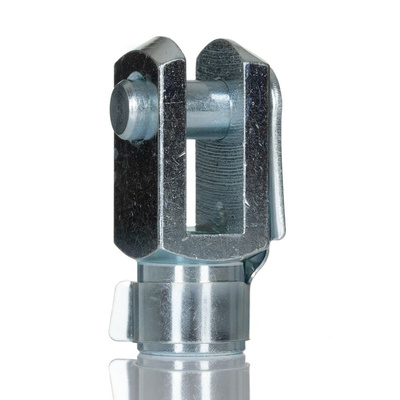

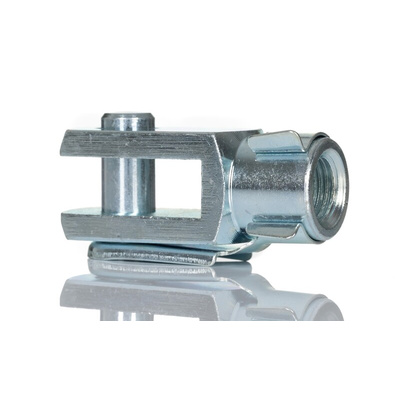

To get your pneumatic cylinder set up and ready to roll, use this piston rod clevis from IMI Norgren. It's a U-shaped device with a pin that slots through two mounting holes. This means it securely holds the end of a piston rod to allow the cylinder to swivel through one plane of motion. A regulation M12x1.25 piston rod thread is widely compatible with commonly used air-powered appliances. As this clevis has a corrosion-resistant stainless steel construction, you can trust it to handle the demands of heavy-duty and damp environments.

Features & Benefits

• Compact dimensions of 29 (L) x 60 (W) x 20mm (H) to slot into busy setups with ease
• Fits piston rods with bore diameter sizes of 40 and 50mm for versatile mounting
• Broad operating temperature range of -5°C to +80°C ensures reliable performance in tough settings

Applications

• Material handling equipment
• Distribution centres
• Textiles manufacturing

Can I mount attachments vertically with the piston rod clevis?

Yes, this product installs with equipment both horizontally or vertically for flexibility.
