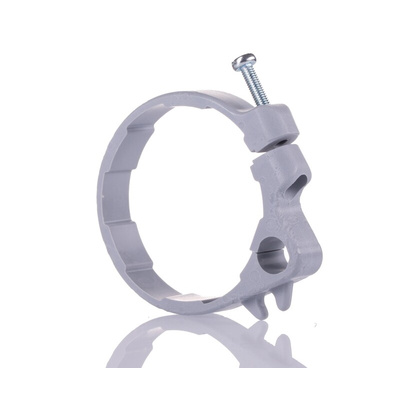

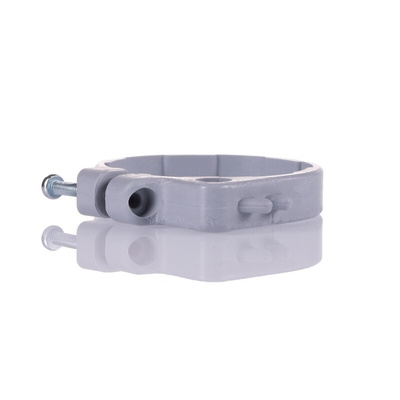

Norgren Bracket QM/33/040/22, To Fit 40mm Bore Size

IMI Norgren Bracket For Use With 40mm Bore Cylinder, 40g Weight - QM Series - QM/33/040/22

Use this bracket from IMI Norgren to mount pneumatic fittings in your industrial system. It attaches a magnetic reed switch to a pneumatic cylinder, so the switch is secure even in vibration-prone environments. This component is made of thermoplastic material that resists impact and abrasion, making it a durable option for long-term performance. As it accommodates a bore size of 40mm and has a width of 10mm, you can conveniently install this compact accessory in applications with space limitations.

Features & Benefits

• Switch mount-style for simple and secure fitting to your equipment
• Can be paired with cylinders in the R./57100/M and R./57300/M ranges for versatile use
• Round-shaped design for ease of handling

Applications

• Robotics and automation systems
• Sewage treatment plants
• Medical equipment

How much does this mounting bracket weigh?

This mounting bracket has a low weight of 40g, so it's easy to handle during installation and adds minimal strain to your equipment.

How do I install this mounting bracket?

To install this mounting bracket, simply slide it onto the cylinder and fasten it with a screwdriver. Attach the reed switch to the slot at the top of the bracket.
