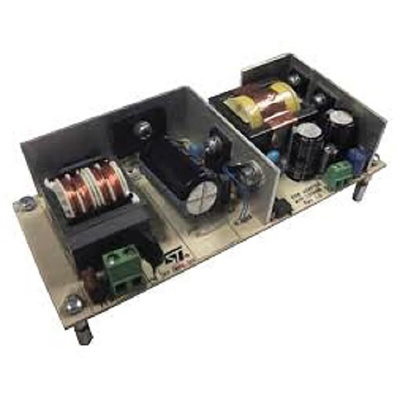

The EVL6566B-65W-QR is a demonstration board tailored on specification of a typical hi-end portable computer power supply. The peculiarities of this design are the very high average efficiency of about 90% without synchronous rectification and very low no load consumption of 100mW at230 Vac. The result is that this converter is compliant to energy star eligibility criteria. The fly back stage implements the new ST dedicated current mode controller L6566B, operating inquasi-resonant mode and detecting the transformer demagnetization by pin ZCD.
Universal input mains range: 90 264 Vac -
frequency 45 ÷ 65Hz
Output voltage: 19 V @ 3.42 A continuous
operation
Mains harmonics: according to EN61000-3-2
Class-D or JEITA-MITI Class-D
Stand-by mains consumption: <100 mW @
230 Vac
Average efficiency: better than 89% without
synchronous rectification MI: according to EN55022-Class-B
Datasheet - EVL6566B-65W-QR| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
