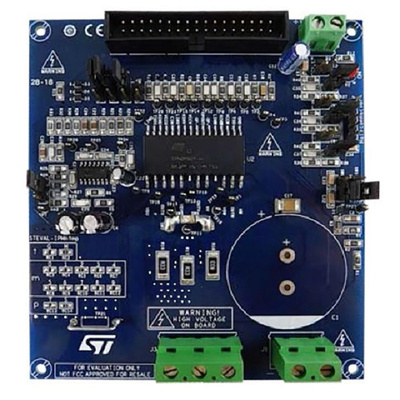

The STMicroelectronics SLLIMM nano SMD (small low-loss intelligent molded module) product (STIPNS1M50T-H). It provides an affordable and easy-to-use solution for driving high power motors in aide range of applications such as power white goods, air conditioning, compressors, power fans and 3-phase inverters for motor drives in general. The IPM itself consists of six MOSFETs, three high voltage half-bridge gate driver ICs and a wide range of features like under voltage lockout, smart shutdown, internal temperature sensor and NTC, overcurrent protection and internal op-amp. The main characteristics of this evaluation board are small size, minimal BOM and high efficiency. It features an interface circuit (BUS and VCC connectors),
Input voltage: from 125 to 400 VDC
Nominal power: up to 60 W
Nominal current: up to 0.6 A
Input auxiliary voltage: up to 20 VDC
Single- or three-shunt resistors for current sensing (with sensing network)
Three options for current sensing: dedicated external op-amps, internal
SLLIMM-Nano SMD op-amp (single) or via MCU
Datasheet - STEVAL-IPMnM2S| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
