RS PRO Jack Connector Panel Mount Socket, 3Pole

RS PRO Panel Mount Locking Jack Connector

Consider the RS PRO locking jack connector as part of your custom audio equipment system. This style of connector is the ideal solution for audio cables that tend unplugged at the most inconvenient moment. They are compatible with audio & video patch panels, can be mounted from the front and secured with screws in a sequence that’s easily identifiable.

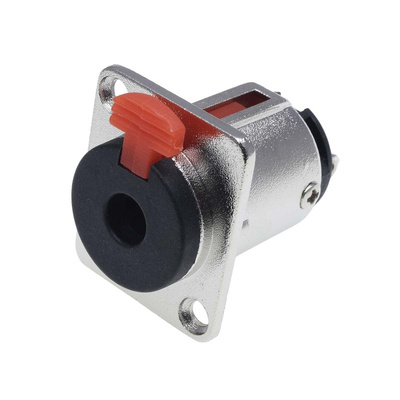

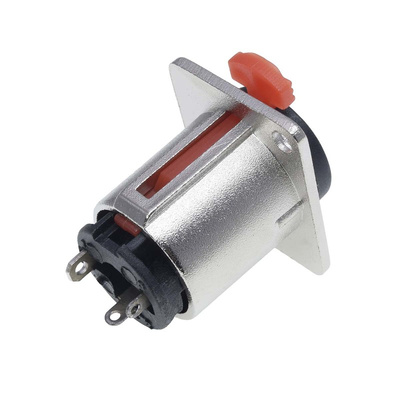

Upon inspection the RS PRO panel mount locking jack is female which has 3 poles, 37 mm in length, silver plating contacts and 3A current rating per contact. A unique locking mechanism automatically locks in the stereo plug and can only be removed via the release tab.
Common applications include pedal boards for connecting your guitar or running your signal chain to an amplifier.

Features and Benefits

• Female 6.35 mm Jack Socket
• Mates with all mono or stereo plugs specified to EIA RS-453
• Auto locking
• Release mechanism
• Compatible with Audio & Video Patch Panels

Specification

• No. of Poles 3
• Length 37mm
• Insulation Material: Zinc Alloy
• Current Rating per Contact: 3A
• Voltage Rating: 500V
• Operating temperature ranging between -20°C and 65°C
• Contact Plating: silver plated
• Colour: Black/Red C
• Connector Format: Socket
• Termination Method: Solder

Things to consider

Audio & Video Patch Panels;

• RS stock no: 143-8918
• RS stock no: 143-8917
• RS stock no: 143-8919

Connector Sealing Gaskets;

• Black - RS stock no: 862-1541
• Red - RS stock no: 862-1560

Application

Audio systems
Guitar Amplifiers

Why would you choose RS PRO for Jack Connectors?

RS PRO is our own brand range and brings you a wide range of high-quality jack connectors, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
