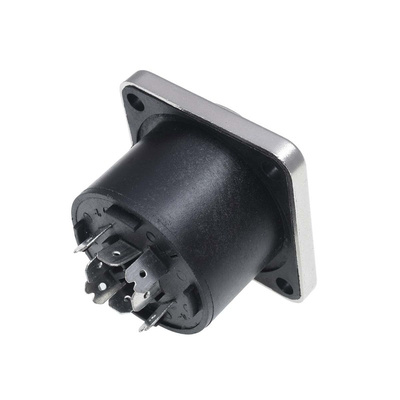

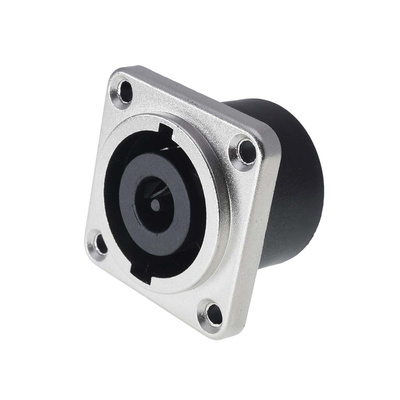

RS PRO Panel Mount Loudspeaker Connector Plug, 8 Way, 30A, Solder Termination

RS PRO Panel Mount Loudspeaker Connector

Looking for a loudspeaker connector, then consider the RS PRO panel mount loudspeaker connector. Our connector is compatible with SPK type equivalent connector plugs and an ideal solution for amplifiers and custom PA loudspeakers. Specifications include; 8 poles with solder terminals, high voltage rating of 250V, 30A current rating and silver-plated contacts.

Why would you use this RS PRO loudspeaker connector?

They are the perfect connector for large outputs speakers and have excellent features like a twist locking system that ensure the cable is permanently secured and can only be released via the cable latch mechanism.

Features and Benefits

• 8-pole speaker connector
• "Quick-Lock" compatible system
• Robust and reliable
• Quick and easy to assemble
• D or G panel cut-outs for easy mounting
• Selection of cable wiring and mounting possibilities
• Air tight design
• Countersunk thru holes for screw mounting

Specification

• No. of Poles 8
• Length: 33.8mm
• Insulation Material: Zinc Alloy
• Current Rating per Contact: 30 A
• Voltage Rating: 250 V
• Contact Plating: Silver plated
• Colour: Black/Silver
• Connector Type: SPK
• Connector Format: Plug
• Gender: Male
• Termination Method: Solder

Applications

• Audio Sound System
• PA Speakers
• Amplifiers

Why would you choose RS PRO for loudspeaker connectors?

RS PRO is our own brand range and brings you a wide range of high-quality loudspeaker connectors, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
