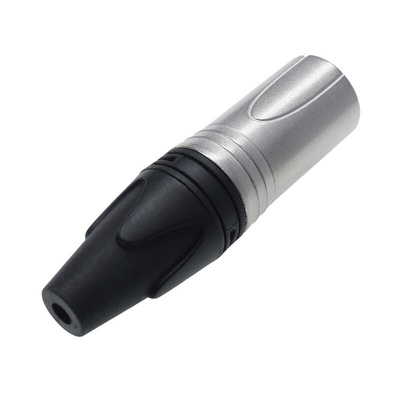

RS PRO Cable Mount XLR Connector, Male, 75 V, 7 Way, Silver Plating

RS PRO Male Cable Mount XLR Connectors

RS PRO are please to introduce a new range of high-quality male XLR connectors designed for use with microphones, amplifiers, mixing boards, and line-gear. These connectors are the cable mount version which is available with 3,6 and 7 pin configurations that connect with XLR female connectors.
During application, a male XLR connector sends signals to a female XLR which carries a balanced signal which is best for rejecting noise. Male XLR connectors are perfect for making your own XLR cable assemblies especially if you require an extension. Prior to soldering, they can be separated easily to expose the soldering terminals.

Features and Benefits

• Gender: Male XLR
• Mounting Type: Cable Mount
• Termination: Solder
• Voltage rating: 75V
• Current rating: 7 A or 7.5 A
• Colour: Black & Silver
• Contact Plating: Nickel or Silver
• Accommodate cable diameters ranging from 2.8 mm to 8.0 mm

Male XLR Cable Mount Options

• 3 pin contacts, 7A, 75 V, Silver plated, RS stock no: 208-5188
• 6 pin contacts, 7A, 75 V, Nickel plated, RS stock no: 208-5179
• 7 pin contacts, 7A, 75 V, Nickel plated, RS stock no: 208-5180
• 7 pin contacts, 7.5 A, 75 V, Silver plated, RS stock no: 208-5191

Applications

XLR Connectors are must-have parts being indispensable for:

• Speakers
• Connectors audio signal in Mixing Boards
• Amplifiers
• XLR Microphones plug Connector
• Musical Instruments
• XLR Connectors in audio sound applications
• Excellent cable Connector for LED screens

How to clean XLR Connectors safely and correctly?

The tolerance to dirt or contamination for XLR Connectors are extremely low. Therefore, to keep it free from dust, it is vital to use the appropriate equipment. We are recommending our own branded RS PRO electrical contact cleaning equipment RS stock no: 917-5914 or RS stock no: 554-298.
It is not a good practice using swabs or cloths as they leave threads behind meaning decreasing contact performance and lifetime.

What is the difference between XLR Male and XLR Female Connectors?

An XLR Male connector has solid pins (usually between 3-pin to 7-pins) whereas the XLR Female is a socket input connector that is paired with a male output.

Why would you choose RS PRO for XLR Connectors?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
