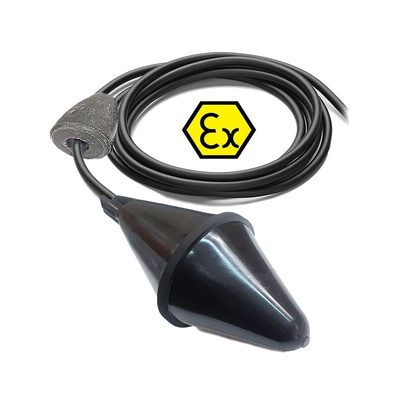

SOBAEXATEX10M, ATMI Cable Mount Copolymer Polypropylene + HR HY Float Switch, Float, 10m Cable, SPDT, 250V ac Max, 125V dc Max

This ATEX certified float switch is ideal for hazardous environments 0, 1, 2 (gas) and 20, 21, 22 (dust). This float is encased in a HR HY (High Resistance HYpalon) press-vulcanised housing, which ensures a double waterproof, can ensure a regulation in very agressive liquids.
The SOBA EX ATEX certified level regulator are equipped with an external loaded resin ballast 250 g, adjustable on the cable, which facilitates the rotation point of the level sensor and allows it to work in a wide range of densities.
Thanks to its +/- 25° switching angle, the SOBA ensures a very precise level measurement. The device can also be used in high or low alarm.

Maximum pressure 4 bar
Maximum temperature 70°C
Protection index IP68

Datasheet

Brochure

ATEX Certificate

Instruction sheet
