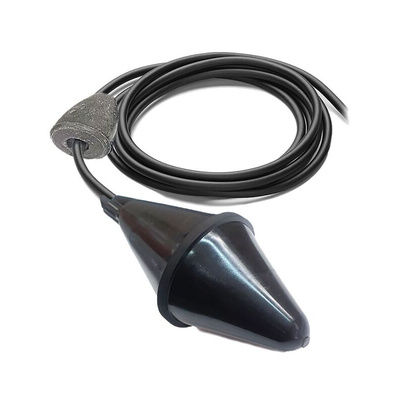

SOBAHRHY10M, ATMI Cable Mount Copolymer Polypropylene + HR HY Float Switch, Float, 10m Cable, SPDT, 250V ac Max, 125V dc Max

This float level switche is a heavy duty float level switch designed for aggressive liquids. It is encased in a HR HY press-vulcanised housing, which ensures a double waterproof, can ensure a regulation in very agressive liquids.
The SOBA HR HY level regulator are equipped with an external loaded resin ballast 250 g, adjustable on the cable, which facilitates the rotation point of the level sensor and allows it to work in a wide range of densities.
Thanks to its +/- 25° switching angle, it ensures a very precise level measurement. The device can also be used in high or low alarm (overfill protection or protection against idling). If your installation is located in a hazardous area, choose our ATEX certified float switch SOBA EX.
Very reliable, it is used in a wide range of applications ...

Maximum pressure 4 bar
Maximum temperature 90°C
Protection index IP68
