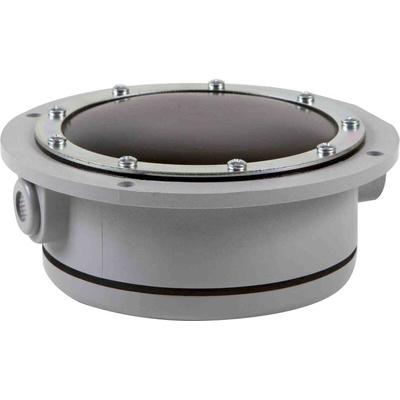

SOLIBAM, ATMI SOLIBA M Series Level Detector Level Sensors, SPST NO/NC Output, Panel Mount, Glass Fiber Reinforced Plastic Body

The SOLIBA M is a small membrane level detector for non-explosive areas which detects the high, low and / or intermediate level in the hoppers or small containers and the indications of stuffing in the endless wires and other types of transport.
Positioned inside of the hopper or silo, the SOLIBA M membran level detector is actuated by a membrane. The operation of the detector is the result of the pressure exerted by the bulk material against the membrane. It can be used for powdery and granular products with easy flow and with a specific weight between 0.3 and 2.5 t/m³.
The choice of a SOLIBA M level detector is highly recommended to secure your installations for a minimum cost, even if they are equipped with other types of equipment such as rotary paddles, vibrating blades, capacitive probes, ultrasound, radars, etc. .

Cut out power 16A
Maximum temperature 60 °C
Protection index IP44
