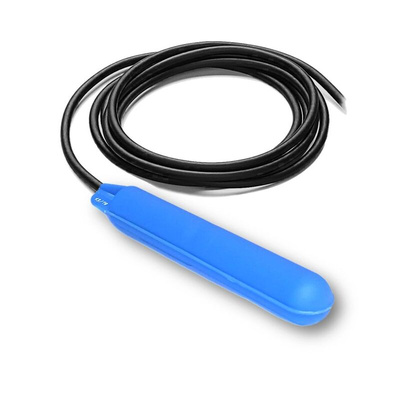

TUBA1NEO5M, ATMI Cable Mount Copolymer Polypropylene Float Switch, Float, 5m Cable, SPDT, 250V ac Max, 125V dc Max

This float level switch is a small diameter tubular float that has been designed to fit tanks and cisterns having restriced access.
Its small 1" diameter allows it to pass through the narrow openings usually found on the side walls of tanks. As the liquid level reaches the float, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel.
Thanks to its +/-20° switching angle, the TUBA float level switch ensures a very precise level measurement..
The installation is possible up to a water depth of 55 meters.
The TUBA 1'' float level switch can be installed in 3 ways :
fixed to a cane, vertically suspended on the cable with external ballasts, or horizontally mounted on the tank sides with a gland.

Maximum pressure 5.5 bar
Maximum temperature 85°C
Protection index IP68
