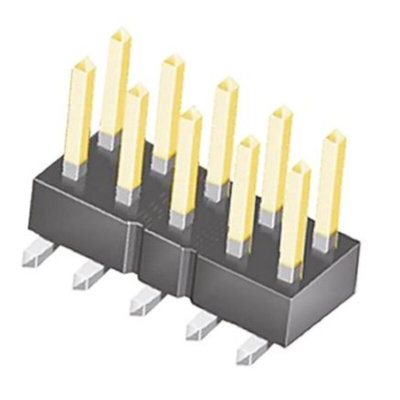

TSM-111-01-L-DV, Samtec TSM Series Vertical Surface Mount Pin Header, 22 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded, Штыревой разъем

Samtec TSM Vertical Surface Mount Pin Header, 22 Contact, 2.54mm Pitch - TSM-111-01-L-DV

This is a surface mount terminal strip with a .025” square post. It offers single, double, and triple row options, along with straight, right-angle, or mixed technology pins. As an Extended Life Product™, it has undergone 10 years of Mixed Flowing Gas (MFG) testing and achieves high mating cycles (250 to 2,500). This versatile connector is suitable for various applications, providing reliable performance and durability

Features & Benefits

• The .025” square post design ensures reliable signal integrity
• Passed 10 years of MFG testing, making it durable and long-lasting
• Suitable for board-to-board, cable-to-board, or cable-to-cable solutions
• Achieves high mating cycles, ensuring reliability over time

Applications

• Used for high-speed connections within server racks
• Ensures efficient signal transmission in network infrastructure
• Provides reliable connectivity for control systems and machinery
• Suitable for automotive applications requiring high-speed data transfer

What is the contact pitch of the TSM-111-01-L-DV?

The TSM-111-01-L-DV operates on a 0.025” square post contact pitch.

Can I use this connector for high-speed data transmission?

Yes, the TSM-111-01-L-DV is designed for high-speed performance.
