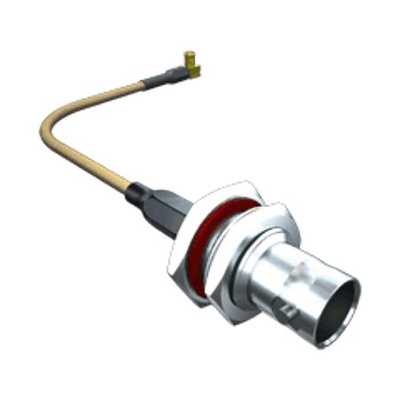

RF179-72SP1-74SP3-0600, Samtec RF179 Series MCX to BNC Coaxial Cable, 600mm, RF Coaxial, Terminated

Samtec Coaxial Cable, 75Ω Characteristic Impedance, 0.8dB Attenuation - RF179 Series - RF179-72SP1-74SP3-0600

To reliably send radio signals between components in your setup, choose this coaxial cable from Samtec. Its RF cable type means it's at home carrying radio frequency transmissions, so it's highly suited to broadcasting or telecommunications tasks. A BNC connector at one end and an MCX terminal at the other offer a versatile connection that takes two ticks to hook up for fast installation. An FEP sheath withstands thermal stress and corrosive chemicals to deliver a long service life.

Features & Benefits

• Silver-plated copper shielding minimises disruption from EMI
• Functions hiccup-free in temperatures between -50°C and +165°C to suit harsh environments
• PTFE insulation provides effective dielectric performance, consistent impedance and corrosion resistance
• Compatible with components from Samtec's SMB7H, DIN7A, BNC7T, MCX7 and MMCX7 series for flexible use
• 600mm length for connectivity over medium distances

Applications

• Telecommunications networks
• Antenna systems
• Data centres
• CCTV infrastructure
• Satellite signalling

What capacitance does this coaxial cable have?

This product has a capacitance of 64pF/m, so it maintains high signal integrity in applications such as radio transmission or data transfer.
