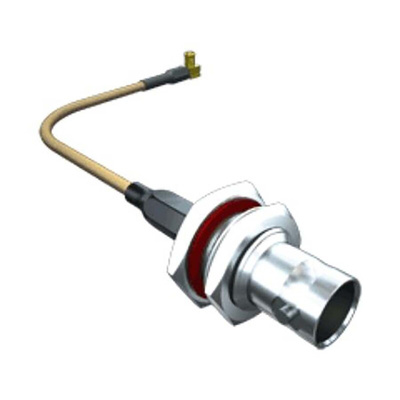

RF179-74SP3-72RP2-0254, Samtec RF179 Series Male MCX to BNC Coaxial Cable, 254mm, RF Coaxial, Terminated

Samtec Coaxial Cable, Right-Angled Connector, 0 to 4GHz Frequency Range - RF179 Series - RF179-74SP3-72RP2-0254

Share process data between your machines in a flash with this Samtec coaxial cable. Its copper wires are highly conductive, so they transmit current efficiently through your system for smooth signalling. As it works with a propagation delay of just 4.83ns/m, the product quickly delivers data to keep equipment running without a snag. Cable clutter is no issue, thanks to the cord's short 254mm length. As the silver-plated copper shielding protects against high EMI levels, it's a reliable choice for carrying signals cleanly through electrical noise.

Features & Benefits

• Right-angled connector reaches into narrow spaces for flexible installation
• Works with frequencies between 0 and 4GHz for wide signal compatibility
• Durable FEP cable jacket shakes off nicks and cuts
• Maximum attenuation of just 0.8dB/m cuts the risk of signal loss

Applications

• Material handling
• Warehouses
• Fluid management

Can I use this cable in extreme temperatures?

Yes, this product works in temperatures between -50°C and +165°C, so you can count on it to stay strong in harsh industrial environments.

How can I identify this cord in my setup?

This cable comes with a bright amber sheath, so it's sure to stand out in busy systems.

Datasheet - RF179-74SP3-72RP2-0254

Line Drawing - RF179 Series
