SKF 1311 EKTN9 Self Aligning Ball Bearing- Open Type 55mm I.D, 120mm O.D

2091811
Номер производителя: 1311 EKTN9Производитель: SKF
Цена за шт.
42884.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

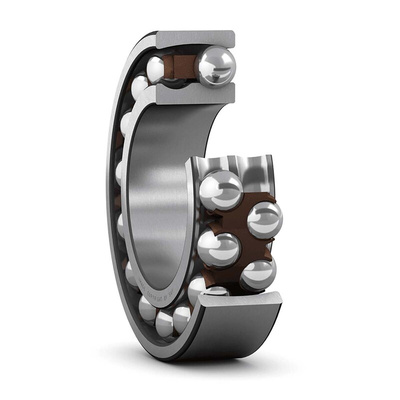

SKF Ball Bearing, Self-Aligning Type, 55mm ID, 120mm OD, 29mm Race Width - 1311 EKTN9

Need a reliable ball bearing that can handle a little misalignment without getting bent out of shape? Try this self-aligning option from SKF. Thanks to a spherical raceway in the outer ring, the balls can move sideways as well as rotationally, so the inner ring can swivel against the outer when needed. This gives it a bit of wiggle room if the shaft is likely to deflect while your equipment is running. The open-ended design means there's no shield or sealant on either side of this component. As a result, it's best suited to closed systems where lubricant can flow freely and keep the rolling parts well-greased for optimum performance.

Features & Benefits

• 1.6kg weight keeps strain on your system to a minimum
• Maximum speed of 7500r/min is handy for high-velocity settings
• Hefty 50.7kN dynamic load rating and 18kN static load rating means it stands up to heavy-duty use
• Non-metallic cage stabilises the balls for improved efficiency
• Tapered bore design makes installation a breeze

Applications

• Gearboxes
• Final drive transmissions
• Vehicle differentials

What's this ball bearing made of?

For durability and resistance to corrosion, this assembly is constructed from bearing steel.

Техническая спецификация
pdfDatasheet - 1311 EKTN9
pdfSKF Bearing Designations
pdfCatalogue - Rolling Bearings
pdfCatalogue - SKF Coatings
Диаметр - внутренний:
55мм
Динамическая грузоподъемность:
50.7kN
Зазор подшипника:
CN
Код части подшипника:
1311
Количество рядов:
2
Материал:
Сталь
Материал клетки:
Non-metallic
Материал кольца:
Сталь
Материал шара:
Сталь
Наружный диаметр:
120мм
Наружный диаметр фланца:
120мм
Подшипник - тип:
Self Aligning Ball Bearing
Серия подшипников:
3 Medium
Статическая грузоподъемность:
18кН
Тип кольца:
Plain
Тип отверстия:
Tapered
Уплотнительное устройство:
Open Type
Ширина кольца:
29мм
