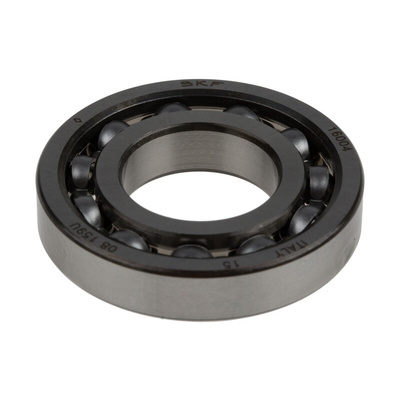

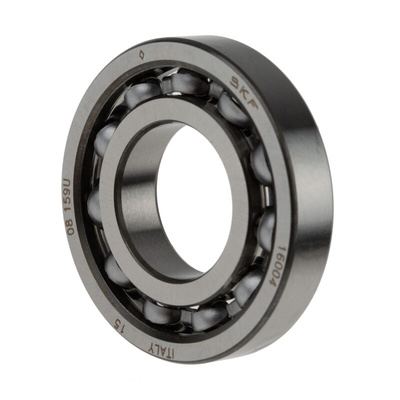

SKF 16004 Single Row Deep Groove Ball Bearing- Open Type 20mm I.D, 42mm O.D

SKF Ball Bearing, Deep-Groove, 42mm OD, 20mm ID - 16004

Optimise the performance of your motors, fans and other rotating machinery with this deep-groove ball bearing from SKF. It's a versatile option as it can handle both radial and axial loads. Thanks to a static load rating of 4.05kN and a dynamic load rating of 7.28kN, it's suitable for use in heavy-duty applications. The open-ended design makes it simple to lubricate the bearing, which reduces friction and wear, helping to prolong its service life.

• Stainless steel material for durability and resistance to corrosion
• Limiting speed of 24,000rpm for use in high-speed applications
• Light weight of 51g to ensure minimal strain on your equipment
• Heat-stabilised up to a temperature of +120°C to withstand heat generated by rotation

Applications

• Industrial motors and fans
• Pneumatic systems
• Domestic appliances
• Power tools
• Robotics industry

How do I choose the right ball bearing for my application?

Ensure that the inner and outer diameters are the right size for your shaft. You should also consider factors such as rotational speed and load capacity to make sure the ball bearing is able to meet the demands of your application.
